Most buildings are required to comply with one or more sets of accessibility standards, such as the ADA Standards/Barrier free for Accessible Design, ICC A117.1, or a state or local accessibility standard.  This page helps simplify these codes and provides resources to help.

healthcare
Is my opening ADA/Barrier free compliant?

Most buildings are required to comply with one or more sets of accessibility standards, because of the Americans With Disabilities Act (ADA) and because of codes or standards adopted by a state or jurisdiction.*  There is currently no “certification” to ensure that a product meets these standards, but this criteria is included in the accessibility standards to help determine whether operable hardware is compliant. See the 'Solutions by Application' area below to learn more.



*In most jurisdictions, 1- and 2-family homes are not required to comply with the accessibility standards, however, multi-family residential buildings must comply with the adopted codes and standards and with the Fair Housing Act.

FPO

Featured Video

Decoded: Accessibility Requirements for Openings

Learn about the basics of the accessibility standards and how they apply to door openings.

FPO
Allegion Security Consultants

Understanding how to make your openings compliant can be confusing.  Allegion security consultants can answer questions and help ensure that your building meets or exceeds accessibility requirements.

Resources

Solutions by Application

Operation

Operable parts of door and gate hardware must not require tight grasping, pinching, or twisting of the wrist to operate.  In most cases, lever handles meet this requirement.  Thumb turns may also be acceptable – many code officials use the side of their palm or the tip of a pencil to test the operation of the thumb turn.  Keypads that accept access-control codes are not specifically addressed by the standards, but they are typically acceptable because they do not require tight grasping, pinching, or twisting of the wrist to operate.

Explore accessibility solutions from Schlage

Mounting Height

Operable hardware must be mounted 34 inches minimum and 48 inches maximum above the floor or ground, or as required by more stringent state or local codes.  The codes and standards include some exceptions for the mounting height of existing locks, and for locking/latching hardware on swimming pool access doors.  Hardware that is operated only by security personnel such as prison guards or bailiffs is also exempt from some requirements.

Explore accessibility solutions from Schlage

Keys and Electronic Credentials

The accessibility standards address “operable parts” of door hardware, but keys and electronic credentials used to operate locks are not covered by the standards.  Keys and credentials which require physical dexterity are not prohibited, however, accommodations may need to be made for employees who are unable to operate hardware using these methods.

Explore accessibility solutions from Schlage

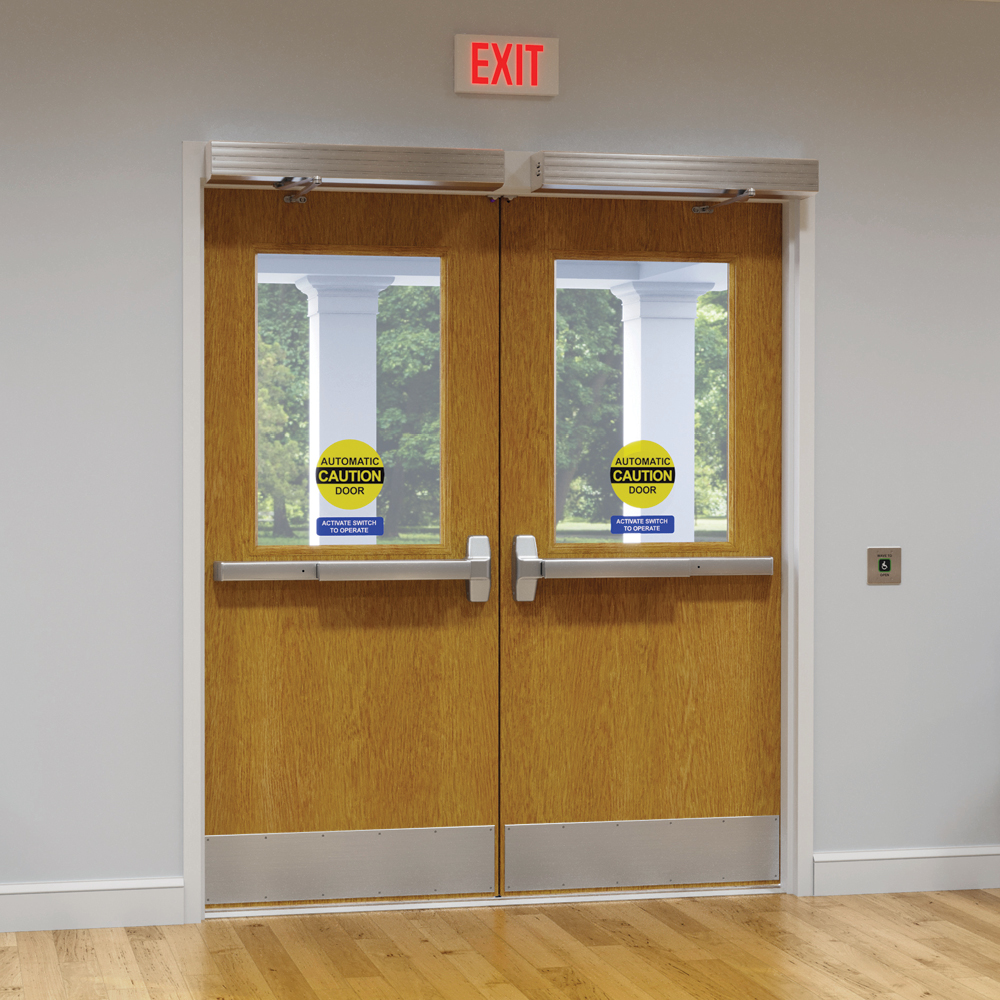

Opening Force

To manually open an interior non-fire-rated swinging door, the opening force for pushing or pulling the door is limited to 5 pounds. This is consistent across the model codes and accessibility standards, although the IBC applies the 5-pound maximum force regardless of whether the door has a door closer, and NFPA 101 applies it only to doors without closers.  For “other” manually-operated swinging doors – including exterior doors and fire doors, the 2021 editions of the IBC and NFPA 101 allow a maximum of 30 pounds to set the door in motion, and 15 pounds to move the door to the fully-open position.

Explore accessibility solutions from LCN

Closing Speed

To facilitate the safe movement of people through swinging door openings, the accessibility standards mandate a minimum closing speed for doors.  A door equipped with a door closer must move from the 90-degree open position to 12 degrees in no less than 5 seconds.  A door with spring hinges must take at least 1.5 seconds to move from the 70-degree open position to the closed position.  Door closers are recommended where greater door control is needed.

Explore accessibility solutions from LCN

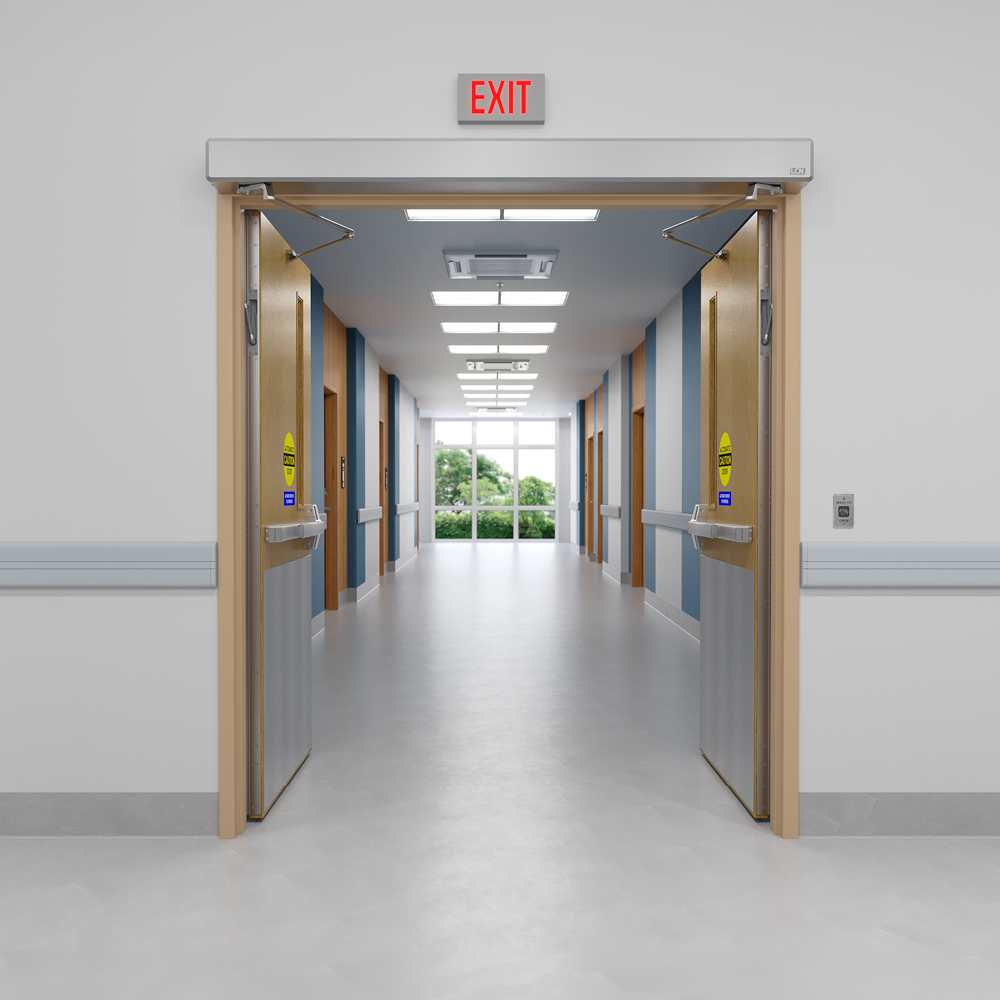

Automatic Operators

The accessibility standards do not currently require doors to have automatic operators, although doors are sometimes automated when they do not meet the requirements for manually-operated doors. For example, if a door does not have the proper maneuvering clearance for access, adding an automatic operator may help to overcome the problem. The 2021 edition of the International Building Code requires automatic operators for accessible public entrances in some buildings (read more about this change here).

Explore accessibility solutions from LCN, like automatic operators

Door Clear Opening Size

For most doors, the minimum clear opening width is 32 inches (there are some exceptions). For single doors, this is measured from the face of the door – open to 90 degrees –  to the stop on the strike side of the frame.  For pairs of doors, at least one door has to provide a minimum of 32 inches of clear opening width. Again, this is measured with the door open to 90 degrees, and the measurement is taken from the face of the open door to the edge of the other door in the closed position or to the side of the mullion, if present.

Explore solutions from Steelcraft, Von Duprin, and LCN

Maneuvering Clearance

The area around a manually-operated door is required to be kept clear of obstructions, in order to allow a person using a wheelchair, walker, or crutches sufficient space to maneuver when opening the door. This area is called the maneuvering clearance, and the size of the required clear space can vary depending on whether it is on the push side or pull side of the door, and if the approach to the door is from the front, the latch side, or the hinge side.

Explore Republic Doors



FPO

10-Inch Flush Surface

With a few exceptions, manually-operated doors are required to have a flush, smooth surface on the push side of the door, measured 10 inches up from the floor.  The purpose is to avoid creating a projection that could catch a cane, crutch, walker, or wheelchair and inhibit passage through the door opening. The 10-inch measurement is taken from the floor or ground to the top of the horizontal bottom rail, extending the full width of the door.

Explore Republic Doors

Interior Sliding Doors

Hardware for sliding doors must be exposed and usable from both sides when the door is in the fully-open position.  Typically, this means that door pulls must be surface-mounted on the face of the door, and there should be at least 1 1/2 inches of clearance behind the pull and on each side between the pull and the jamb in the open and closed positions.

Explore accessibility solutions from AD Systems

Entrance Doors

Accessibility isn't optional—it's critical to making a more equitable world.  It’s especially important that entrance doors are all ADA-compliant and easily accessible for everyone.

Explore accessbility solutions from STANLEY Access Technologies

Vision Light Location

 A vision light is not required in each door opening on an accessible route, but if vision lights are provided for viewing purposes in doors or sidelights, the bottom of at least one of these lights must be located no more than 43 inches above the floor. Additional vision lights may be provided at other installation heights, as long as at least one light is mounted at the required height. This ensures that the light permits viewing for all building occupants – including occupants using wheelchairs.

Explore Steelcraft Doors

Thresholds and Changes in Level

Changes in level at the floor surface can make it more difficult for a person using a wheelchair to maneuver through a door opening. To help mitigate these challenges, the ADA standards and ICC A117.1 contain similar requirements regarding thresholds and changes in level within an accessible route. While door openings are not required by the standards to have thresholds, if a threshold is provided, Chapter 4 limits the height to 1/2-inch, maximum. The threshold requirements apply to both manually-operated doors and automatic doors, in swinging, sliding, or folding configurations.

Explore Zero Thresholds and Gasketing
