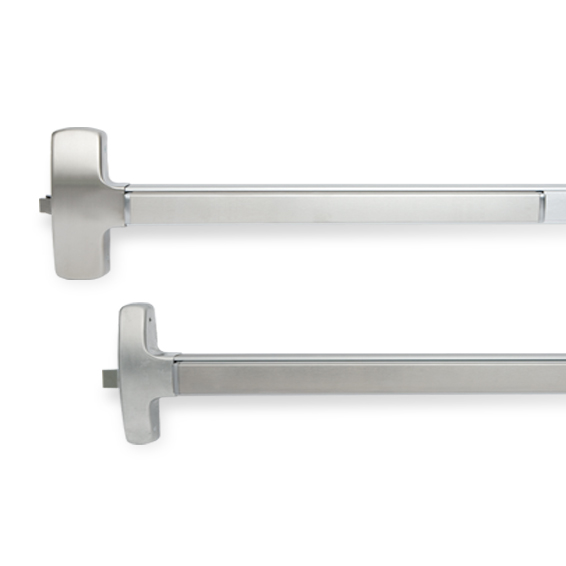

Motorized Electric Latch Retraction (MEL)

Finish:

Falcon MEL is an affordable, energy-efficient around-the-door solution using motorized latch retraction.

Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

Motorized electric latch retraction (MEL) provides energy-efficient electronic control of an exit device for an affordable around-the-door solution. The MEL option is Falcon’s® solution of choice for multifamily and commercial real estate facilities where cost-competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices.

These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also often incorporate exit devices with electric latch retraction.

Features & Benefits

MEL option available on most 24 and 25 Series exit devices (excluding mortise devices 25-M and F-25-M)
Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage® power supply with option board
Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical only Falcon 24 or 25 exit devices
On-board installation and troubleshooting diagnostics built into the motor assembly
Self-calibrating motor assembly
Pushbar is pulled in electronically when dogged
Vandal resistant – detects and responds to events of attack and tampering

Specifications

ANSI/BHMA A156.3
UL305 listed panic devices
UL10 listed 3-hour fire rated devices

Designs & Finishes

The Falcon MEL is available installed when ordered complete or as a retrofit kit. When ordering the MEL conversion kit, please specify finish with part number (US3, US4, US10, US26, US26D, US32D, SP28, SP313). MEL conversion kits are only compatible with mechanical Falcon 24 and 25 series exit devices.
